Metric Series Poppets


  • dsm-button.jpg
  • Corrosion resistant 17-4PH stainless steel

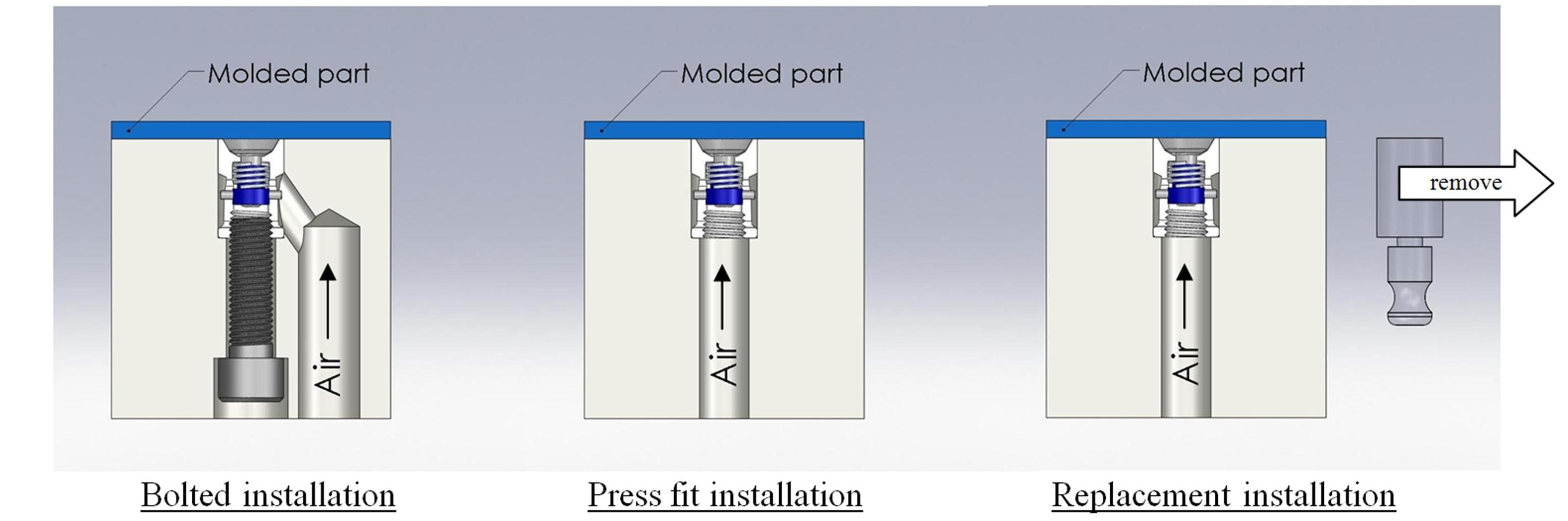

  • Bolt-in mount or press-fit styles available
  • Superior air flow via access holes
  • Low cost
  • Stainless steel screws available upon request
  • Complete family of components
  • Guide sleeve for axial alignment
  • Sleeve reduces wear on cross pin
  • Positive stop to reduce spring fatigue
  • High pressure spring for tighter seal and resistance to vacuum
  • Spring rated for high temperature environments such as compression & rotational molds
  • Sized for new or replacement installations of other metric brands

                                                                                                                        US Patent No. 6,443,421 B1






CATALOG

NOM

D-1

L-1

MOUNTING

T-1

PRICE

NUMBER

DIA



+0.05/-0.00

STYLE





DSM-08

8mm

8.013/8.025

11.00

B

M5x0.8

$78.00

DSM-12

12mm

12.013/12.025

18.00

B

M8x1.25

$88.00

DSM-16

16mm

16.013/16.025

20.00

B

M8x1.25

$96.00

DSM-18

18mm

18.013/18.025

22.00

A

N/A

$104.00

DSM-20

20mm

20.013/20.025

20.00

A

N/A

$121.00
